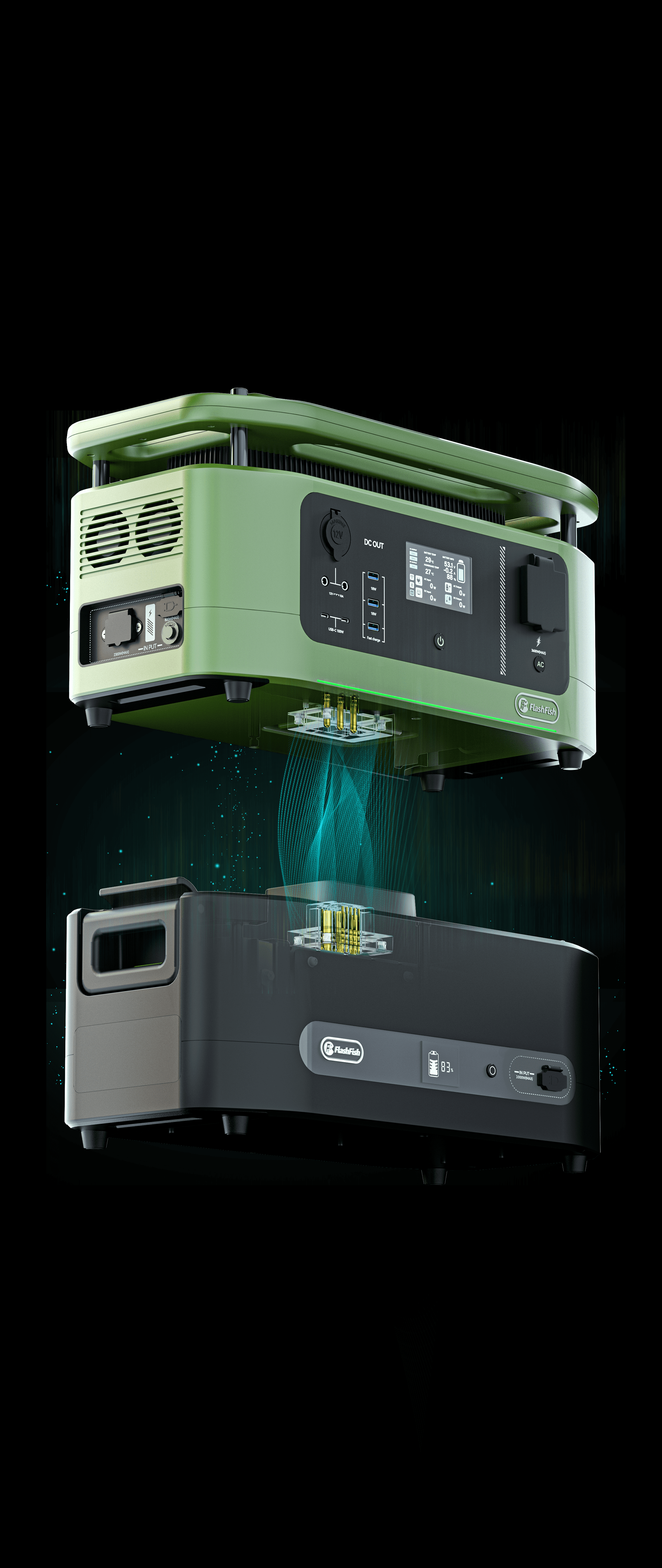

2步连接
无电缆和堆叠
与有线连接产品相比,FT3600在稳定的连接端口、稳定的产品结构、防水防尘、安全性、响应速度、控制速度等能力方面更加出色。
——Safety, Long Life, Low Loss

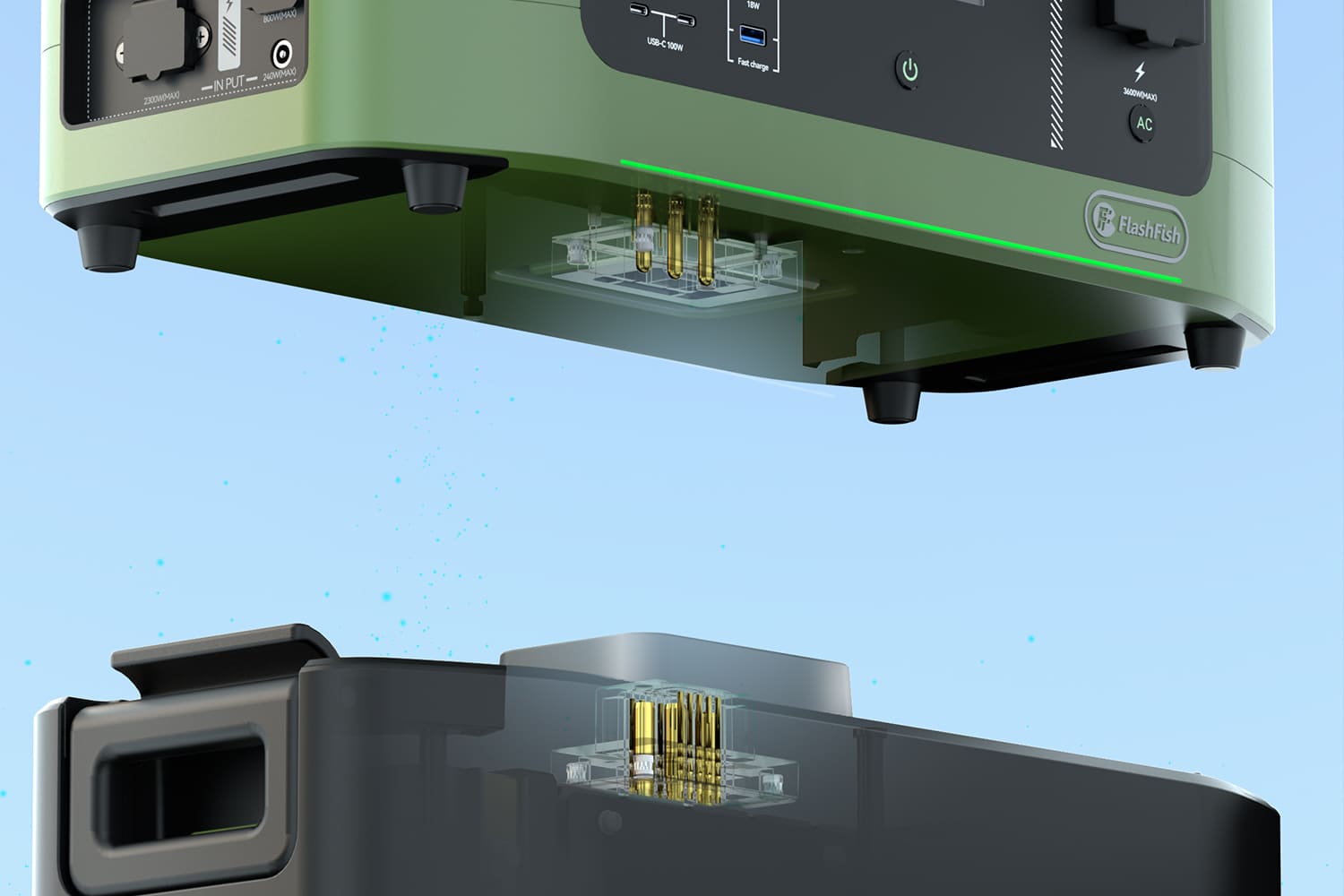

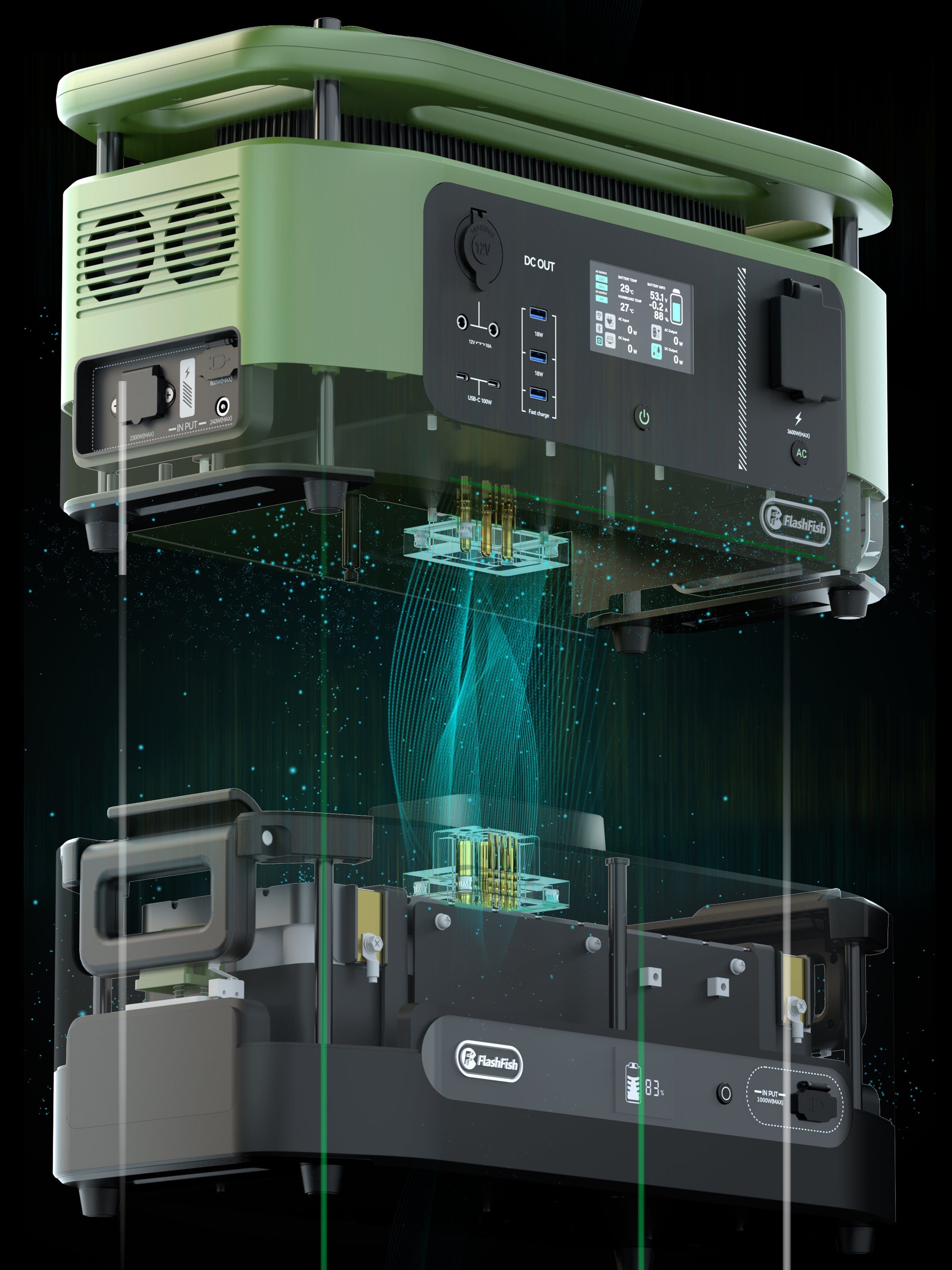

Gold Plated Connector
State-of-the-art static zero-voltage and anti-islanding gold plated connection module.
360° fit by stable and tight , seamlessly integrated conduction and communication, achieve ultra-low loss.
Stronger sealing and oxidation resistance, maximize the life of the product when idle or by store.

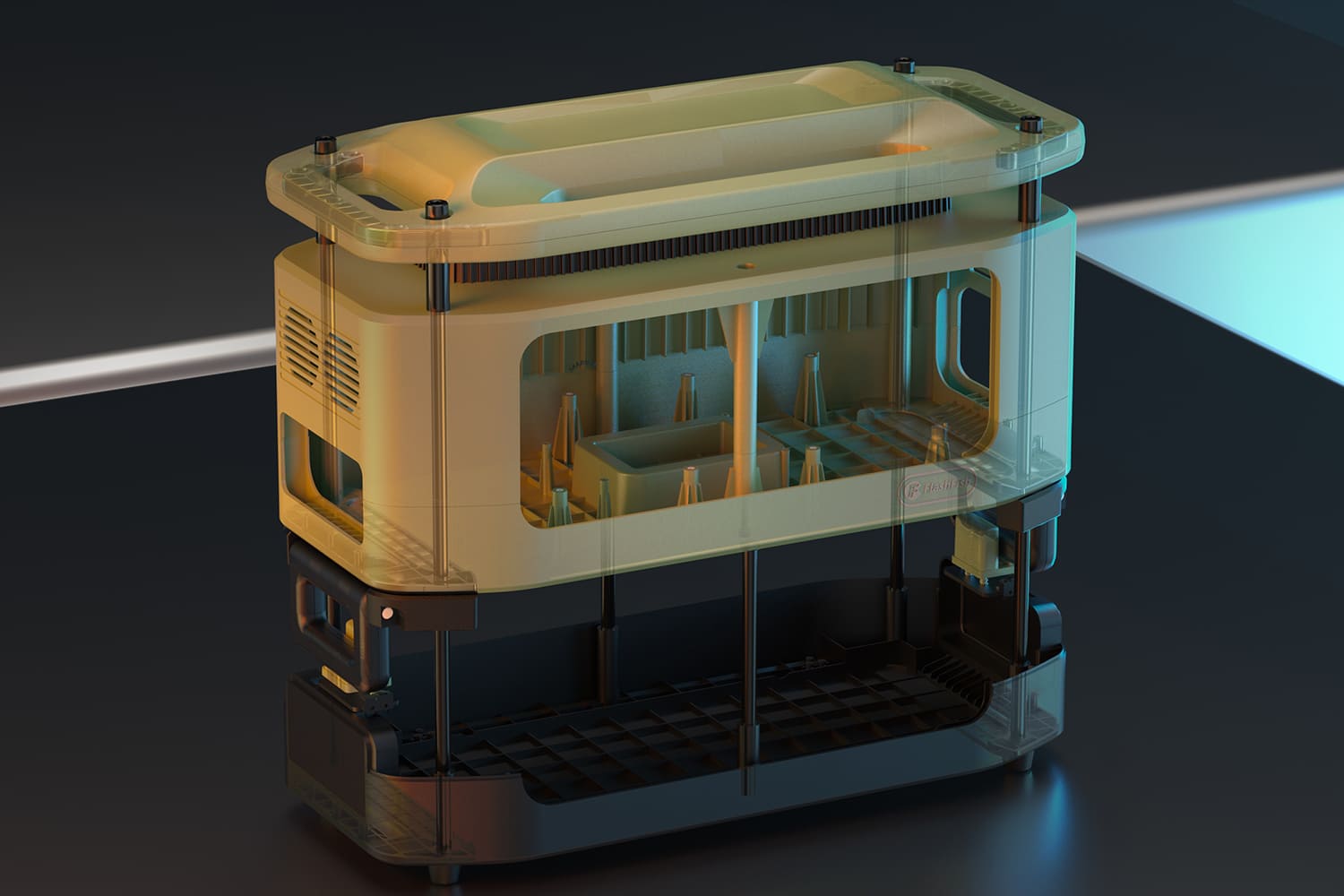

——Portable, Strong, Safety
Handle also be a Locks
Both FT3600 and LFP2300 use a solid 304 steel main frame, which plays a role in load-bearing and protection.
The "handle lock" locks the upper (FT3600) and lower (LFP2300) main frames tightly together, even if they are subjected to strong forces, FT3600 will not easily deflect or fall off.

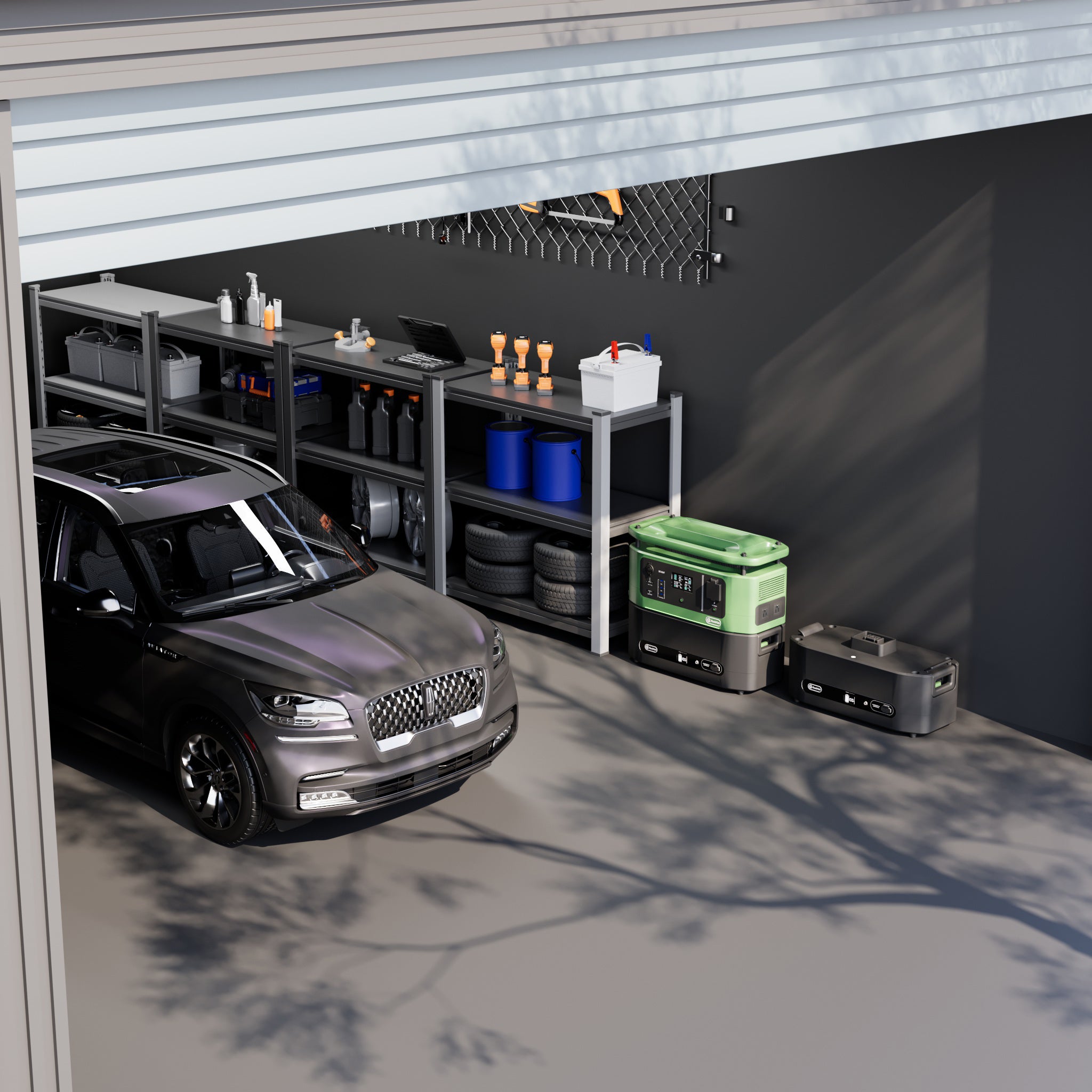

BACKUP POWER SUPPLY
—— The best solution to solve occasional or extremely frequent power outages.
Are you currently experiencing issues with using power stations? Such as
1. Not often used, only remembering it in emergencies, but:
- After being stored for some time, when I tried to turn it on again, it wouldn't work;
- When I use it, the battery capacity is not enough, and it runs out of power quickly;
- The power output is insufficient when in use, unable to support many commonly used appliances;
- Sometimes, when used incorrectly, it breaks down easily.
2. Frequent power outages or power supply only lasts for a few hours per day:
- It's often not fully charged before the next power outage, resulting in insufficient battery power.
- It doesn't support charging and discharging simultaneously, so the battery cannot be kept fully charged continuously.
Don't worry about that! Flashfish provide the optimal solution.
A One-Stop Solution for All Power Station Issues, Providing Stable and Efficient Power by Your Side.
Faced with the frequent issues encountered in the use of various power stations and the ever-increasing global demand for backup power, Flashfish brings you a brand-new solution.
The FT3600 with LFP2300 Backup Power Supply is a highly efficient and stable power station that not only resolves all the aforementioned issues, but also offers an unbeatable price point.
So, what does it offer?

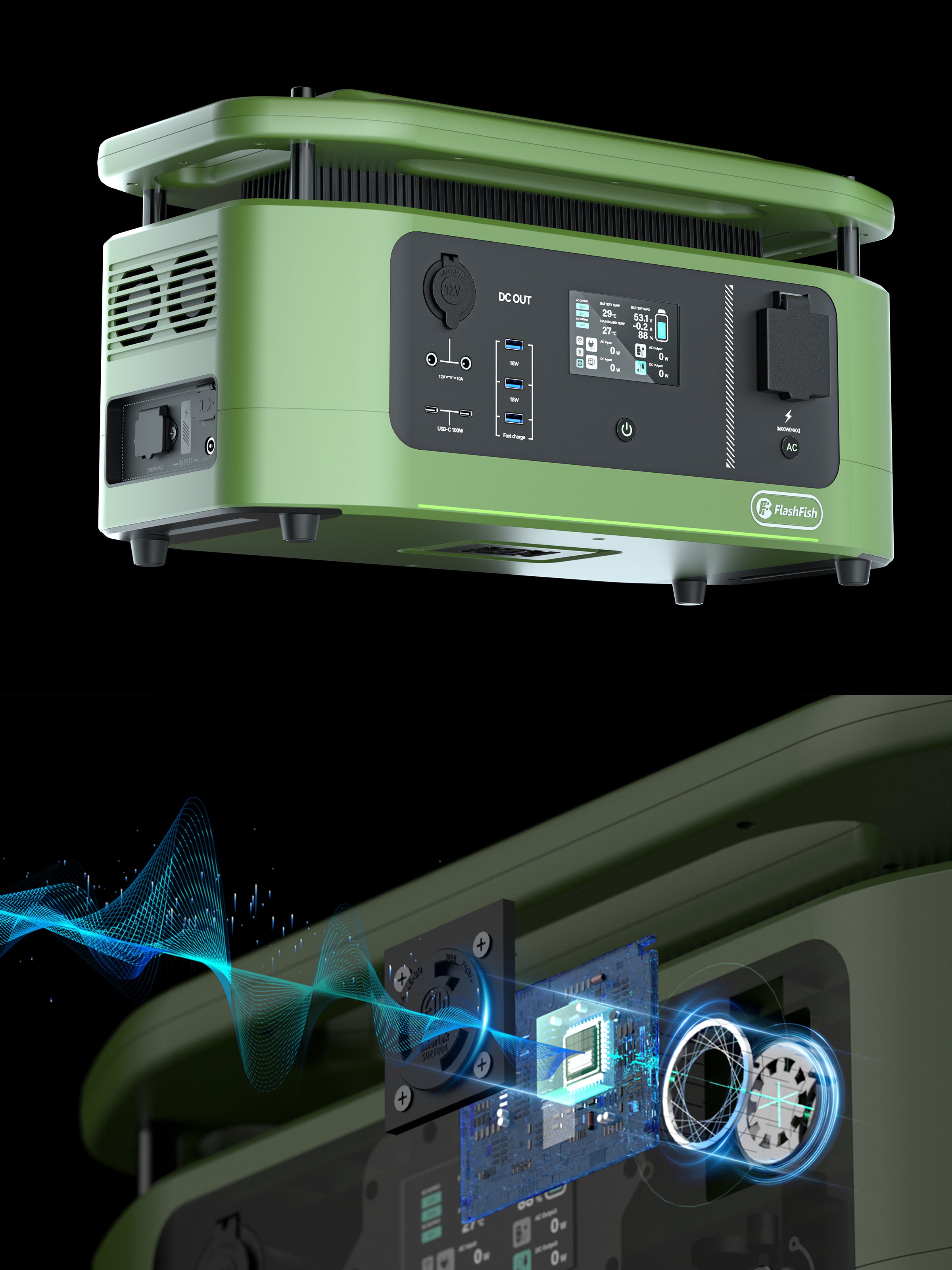

High Frequency 3600W Inverter
——Big Power, Low loss, Non-damaging to home appliances
- 120V 60Hz 3600W Max AC output;
- 7200W Max instant AC output;
- 96% Energy conversion efficiency(DC to AC);
- Pure sine wave AC Output;
- Support input/charging: AC 96V-260V; Unstable waveform; Unstable voltage;
- Support Protection: Overvoltage, Undervoltage, Overload, Short-Circuit, Overheat, Islanding, Overcurrent, etc.

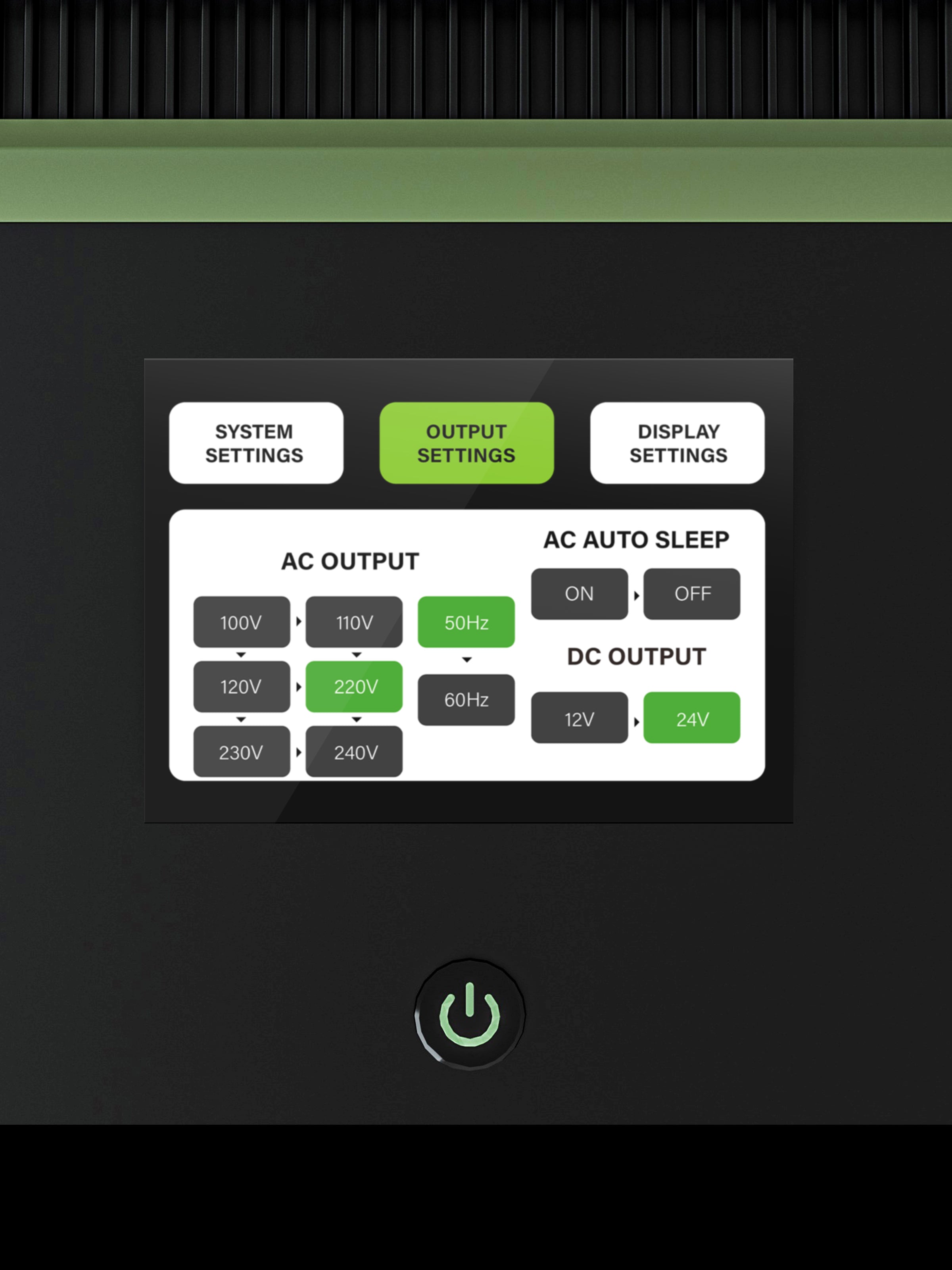

3 Switchable Output Modes
- Switchable AC output volt: "100V" "110V" "120V" "220V" "230V" "240V" ;
- Switchable AC output frequency: "50Hz" or "60Hz"
- Switchable DC output volt: "12V" or "24V"
- More switchable modes>>>
In off-grid operation mode, the FT3600 impressively boasts the capability to directly deliver 120/240V split-phase power, effortlessly catering to households' demands for utilizing two diverse voltage loads concurrently — without any fuss of procuring or employing additional conversion equipment. Similarly, it seamlessly offers direct 12/24V DC power output, eliminating the need for additional adapters or converters.
Furthermore, the FT3600 stands out with its versatility to adjust output frequencies, empowering it to power a diverse array of home appliances or specialized equipment with specific frequency prerequisites.
The fusion of these three indispensible functionalities, paired with its robust 3600W output power, propels the FT3600 to address a broader spectrum of emergency power scenarios, ensuring uninterrupted and reliable power supply.

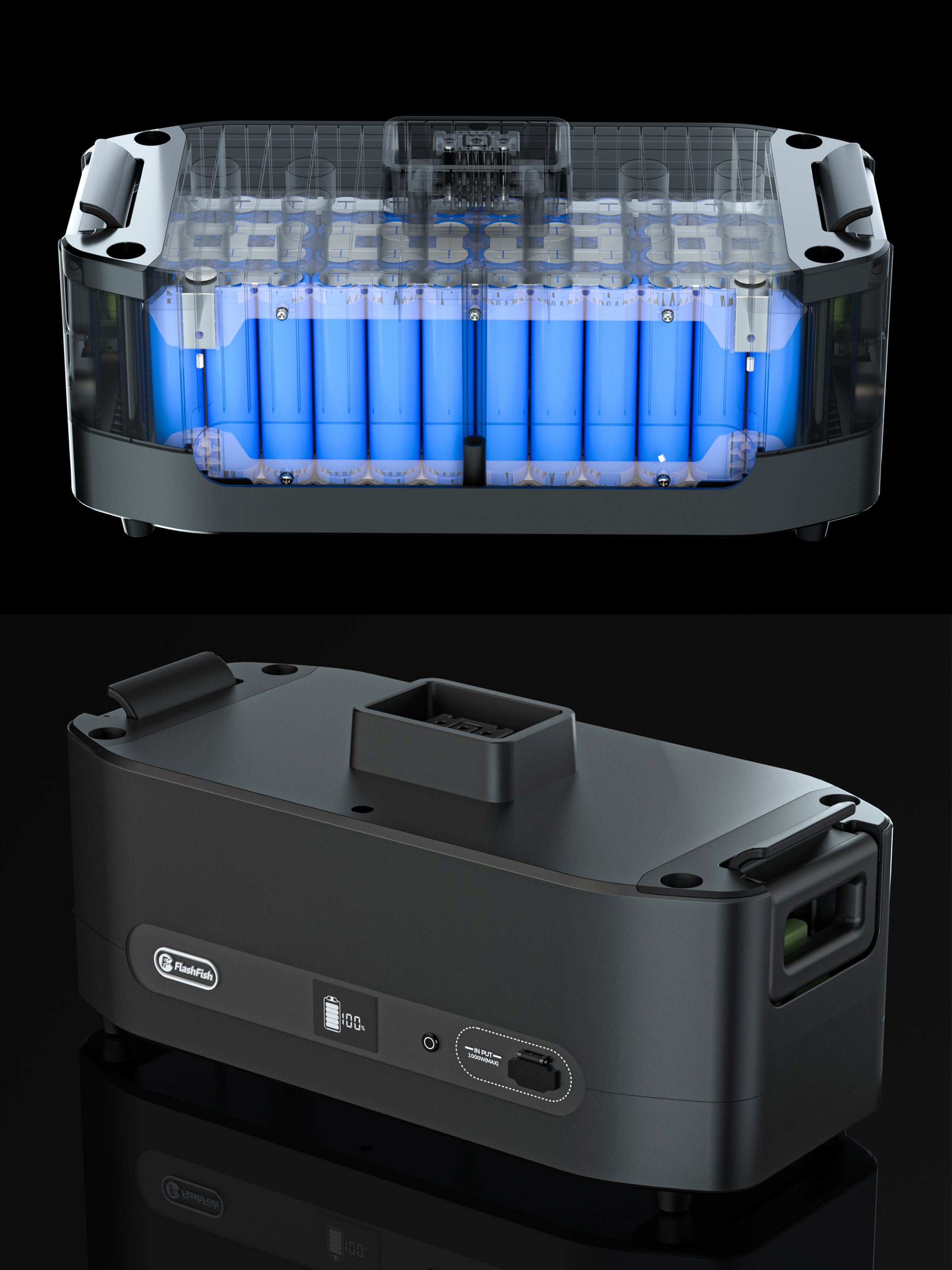

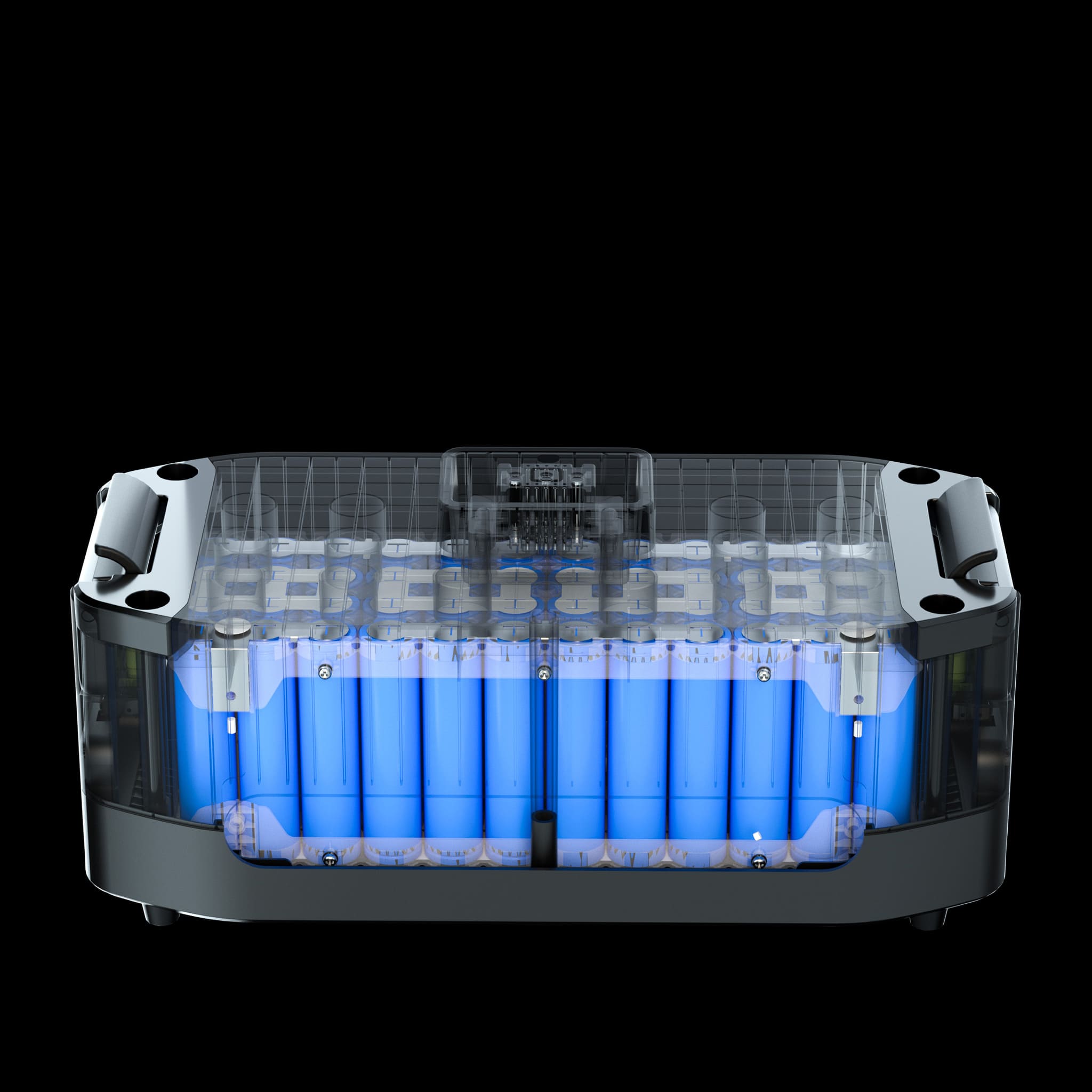

Automotive-grade LiFePO4 Cells
- Battery cell provide by BAK, brand new and Grade-A;
- 100% DOD, 3500+ cycles to 80% Original Capacity;
- Storage loss at 60% battery charge: Approximately 15% over a period of 1 year;
- Modular battery, with a capacity of 2300Wh/Unit.
The purpose of LFP2300 using high-quality lithium iron phosphate batteries is to ensure the long lifespan and high durability of battery cells for users, thus reducing the costs incurred by frequent battery replacements.
With low storage loss, the LFP2300 has a stronger capacity for idle storage over a two-year period, resulting in a lower probability of battery damage. After being stored for a period of time and then reused, it can easily recover its original capacity, indistinguishable from a brand-new battery.
The modular design makes these battery cells reliable solutions for storage and backup power, ensuring a stable power supply when needed.

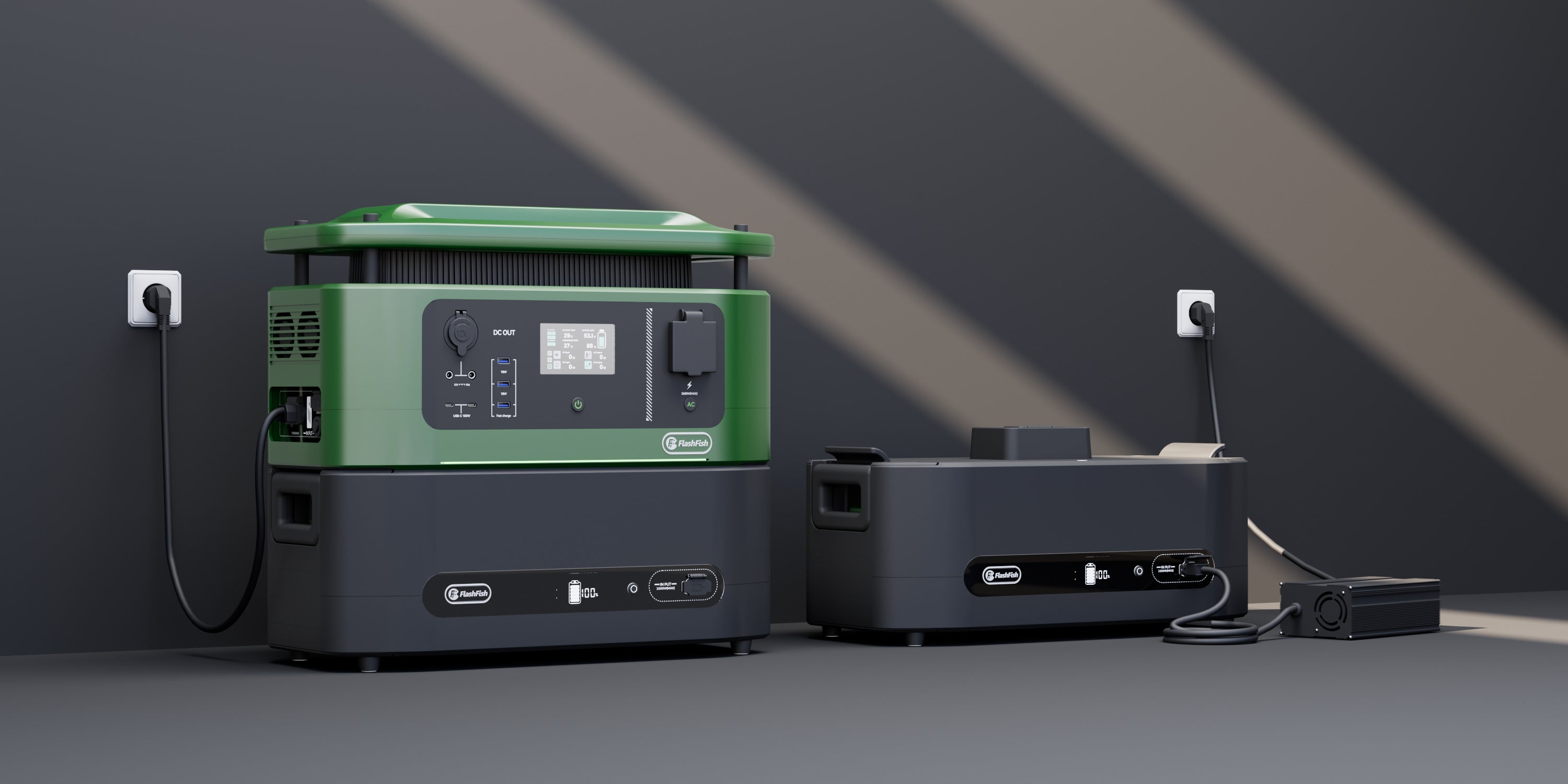

Dual-Mode Flash Charging≈2300W

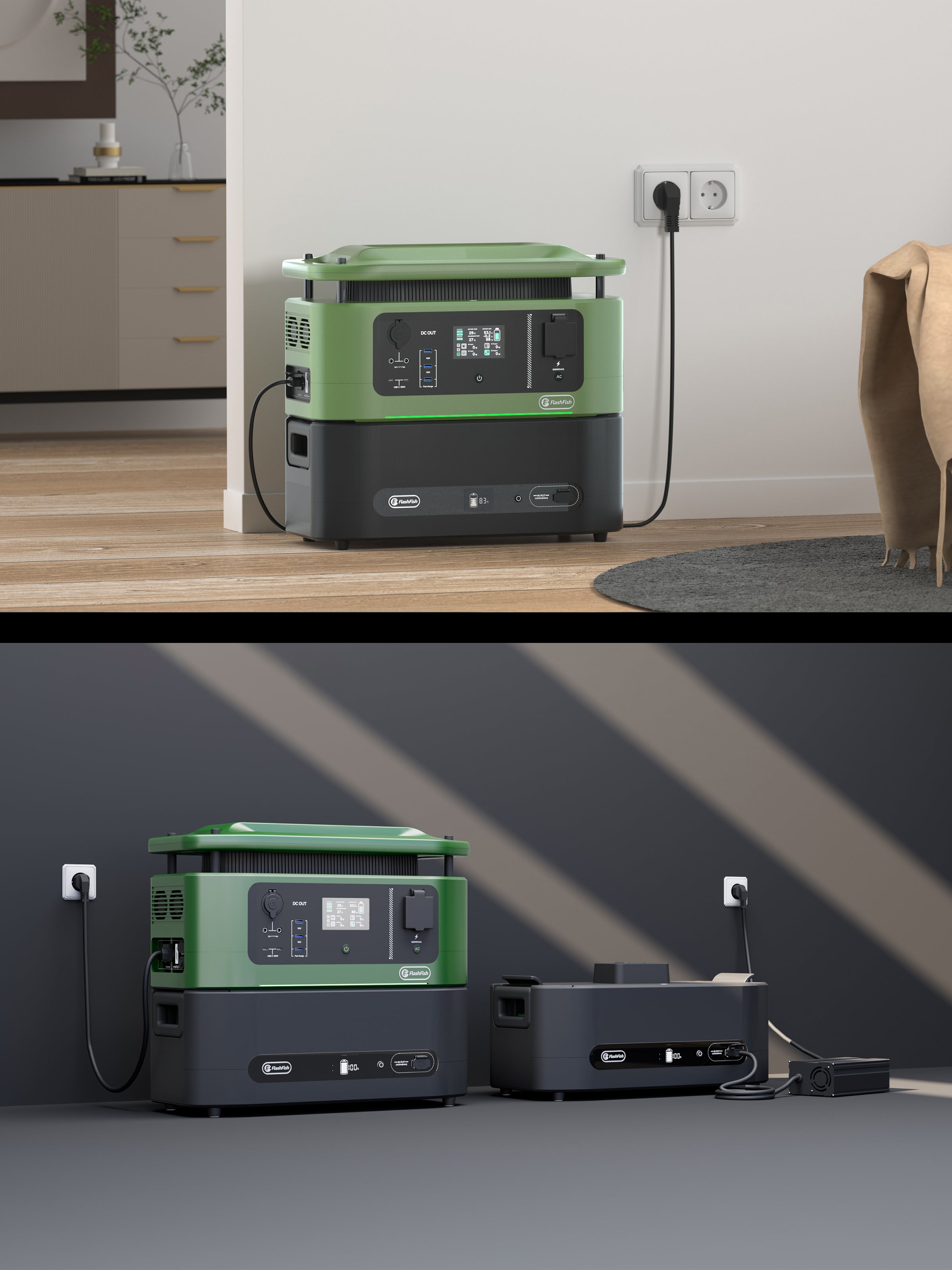

Charging LFP2300 using FT3600 through the wall socket:
- 1750W Max, 0-100% in 1.3 hours;
Charging LFP2300 using its charging adapter through the wall socket:
- 876W, 0-80% in 2 hours. 80-100% about 0.5 hours.
When facing frequent power outages, it is essential to prepare sufficient battery modules, as this allows you to use electrical appliances without any worries.
Assuming a man who have 3 unit LFP2300 battery modules with 0% charge, when the power grid is restored, he can fully charge the 3 unit 2300Wh LFP2300 battery modules in less than 3 hours using the electricity from the grid, quickly preparing for the next power outage.
Based on the above example, the charging speed reaches 2300W/hours, which is far ahead in this industry.
(Note: The 876W battery charging adapter is not included in the set, and it needs to be purchased separately.)
2000W Pro·Mix Lightning Charging
- DC(Solar/Wind/Car/...) charging: 800W Max;
- Wall socket + DC(Solar/Wind/Car/...) Mix charging: 2000W Max;

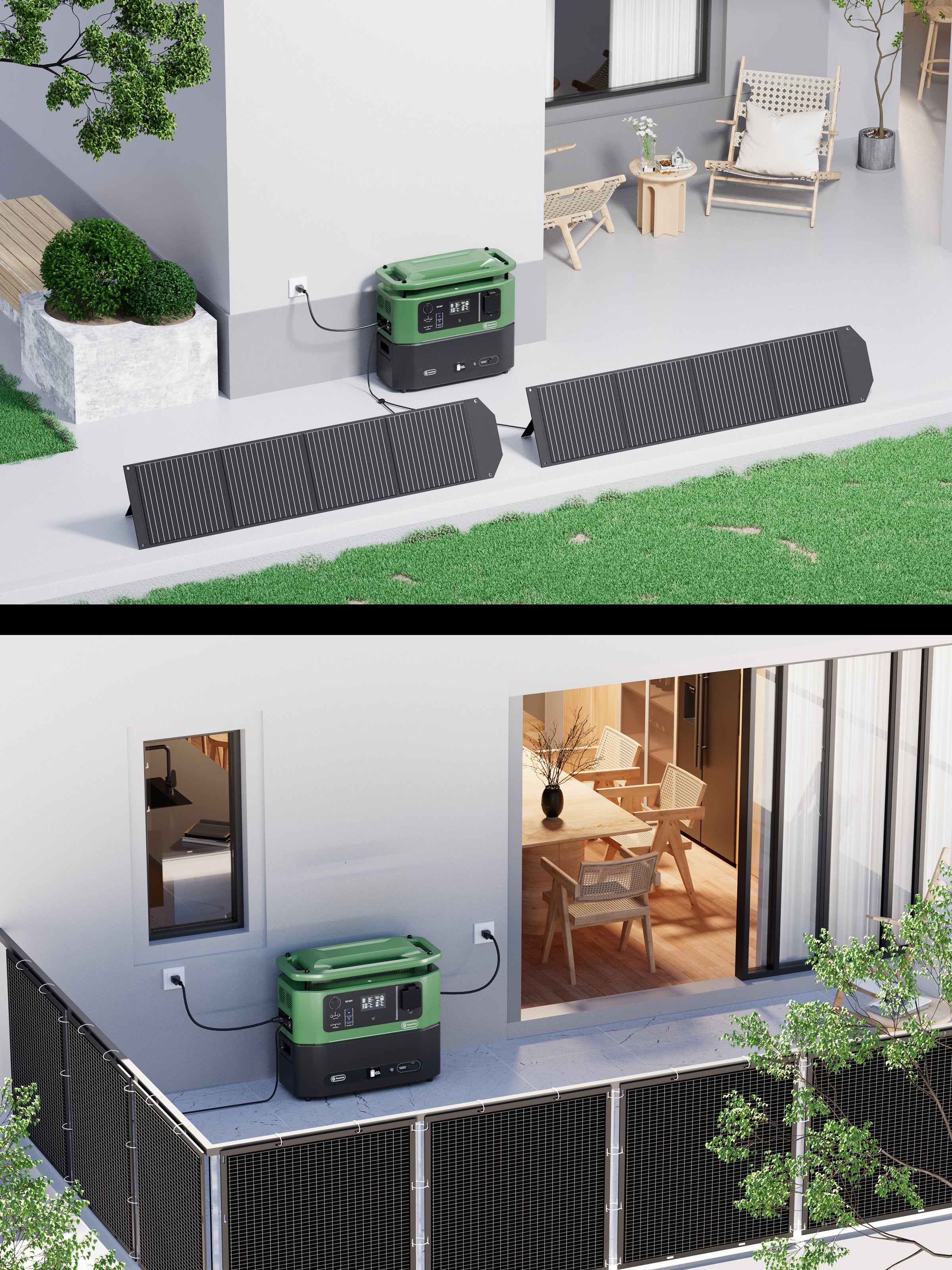

The 800W DC input of the FT3600 boasts robust capabilities, supporting multiple charging modes such as solar, wind, and car charging, offering users a wide range of flexible charging options that break free from the constraints of traditional grid power.
With a maximum hybrid charging power of 2000W, users can simultaneously utilize both AC and DC charging methods, and its intelligent management system can intelligently distribute and optimize charging power to ensure optimal charging results.
By harnessing renewable energy or hybrid charging with grid power, the FT3600 significantly reduces long-term power costs, delivering significant economic benefits to users.
Are you currently experiencing issues with using power stations? Such as
1. Not often used, only remembering it in emergencies, but:
- After being stored for some time, when I tried to turn it on again, it wouldn't work;
- When I use it, the battery capacity is not enough, and it runs out of power quickly;
- The power output is insufficient when in use, unable to support many commonly used appliances;
- Sometimes, when used incorrectly, it breaks down easily.
2. Frequent power outages or power supply only lasts for a few hours per day:
- It's often not fully charged before the next power outage, resulting in insufficient battery power.
- It doesn't support charging and discharging simultaneously, so the battery cannot be kept fully charged continuously.
Don't worry about that! Flashfish provide the optimal solution.
A One-Stop Solution for All Power Station Issues, Providing Stable and Efficient Power by Your Side.
Faced with the frequent issues encountered in the use of various power stations and the ever-increasing global demand for backup power, Flashfish brings you a brand-new solution.
The FT3600 with LFP2300 Backup Power Supply is a highly efficient and stable power station that not only resolves all the aforementioned issues, but also offers an unbeatable price point.
So, what does it offer?
High Frequency 3600W Inverter
——Big Power, Low loss, Non-damaging to home appliances
- 120V 60Hz 3600W Max AC output;
- 7200W Max instant AC output;
- 96% Energy conversion efficiency(DC to AC);
- Pure sine wave AC Output;
- Support input/charging: AC 96V-260V; Unstable waveform; Unstable voltage;
- Support Protection: Overvoltage, Undervoltage, Overload, Short-Circuit, Overheat, Islanding, Overcurrent, etc.
3 Switchable Output Modes
- Switchable AC output volt: "100V" "110V" "120V" "220V" "230V" "240V" ;
- Switchable AC output frequency: "50Hz" or "60Hz"
- Switchable DC output volt: "12V" or "24V"
- More switchable modes>>>
In off-grid operation mode, the FT3600 impressively boasts the capability to directly deliver 120/240V split-phase power, effortlessly catering to households' demands for utilizing two diverse voltage loads concurrently — without any fuss of procuring or employing additional conversion equipment. Similarly, it seamlessly offers direct 12/24V DC power output, eliminating the need for additional adapters or converters.
Furthermore, the FT3600 stands out with its versatility to adjust output frequencies, empowering it to power a diverse array of home appliances or specialized equipment with specific frequency prerequisites.
The fusion of these three indispensible functionalities, paired with its robust 3600W output power, propels the FT3600 to address a broader spectrum of emergency power scenarios, ensuring uninterrupted and reliable power supply.
Automotive-grade LiFePO4 Cells
- Battery cell provide by BAK, brand new and Grade-A;
- 100% DOD, 3500+ cycles to 80% Original Capacity;
- Storage loss at 60% battery charge: Approximately 15% over a period of 1 year;
- Modular battery, with a capacity of 2300Wh/Unit.
The purpose of LFP2300 using high-quality lithium iron phosphate batteries is to ensure the long lifespan and high durability of battery cells for users, thus reducing the costs incurred by frequent battery replacements.
With low storage loss, the LFP2300 has a stronger capacity for idle storage over a two-year period, resulting in a lower probability of battery damage. After being stored for a period of time and then reused, it can easily recover its original capacity, indistinguishable from a brand-new battery.
The modular design makes these battery cells reliable solutions for storage and backup power, ensuring a stable power supply when needed.
Dual-Mode Flash Charging≈2300W
Charging LFP2300 using FT3600 through the wall socket:
- 1750W Max, 0-100% in 1.3 hours;
Charging LFP2300 using its charging adapter through the wall socket:
- 876W, 0-80% in 2 hours. 80-100% about 0.5 hours.
When facing frequent power outages, it is essential to prepare sufficient battery modules, as this allows you to use electrical appliances without any worries.
Assuming a man who have 3 unit LFP2300 battery modules with 0% charge, when the power grid is restored, he can fully charge the 3 unit 2300Wh LFP2300 battery modules in less than 3 hours using the electricity from the grid, quickly preparing for the next power outage.
Based on the above example, the charging speed reaches 2300W/hours, which is far ahead in this industry.
(Note: The 876W battery charging adapter is not included in the set, and it needs to be purchased separately.)
2000W Pro·Mix Lightning Charging
- DC(Solar/Wind/Car/...) charging: 800W Max;
- Wall socket + DC(Solar/Wind/Car/...) Mix charging: 2000W Max;
The 800W DC input of the FT3600 boasts robust capabilities, supporting multiple charging modes such as solar, wind, and car charging, offering users a wide range of flexible charging options that break free from the constraints of traditional grid power.
With a maximum hybrid charging power of 2000W, users can simultaneously utilize both AC and DC charging methods, and its intelligent management system can intelligently distribute and optimize charging power to ensure optimal charging results.
By harnessing renewable energy or hybrid charging with grid power, the FT3600 significantly reduces long-term power costs, delivering significant economic benefits to users.
4+安全保障
产品安全是基石
3600W PSW逆变器
2304Wh模块化电池
Specifications

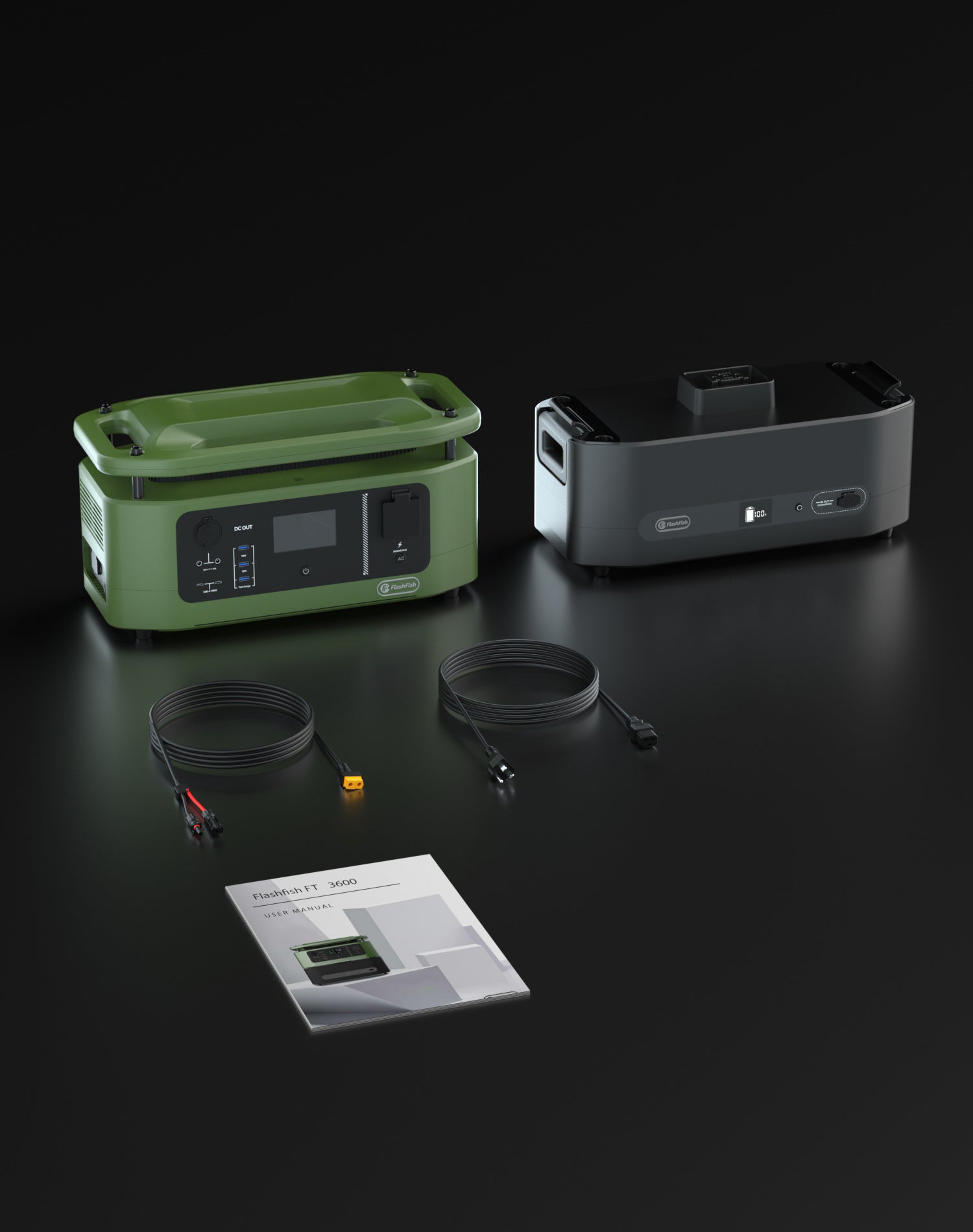

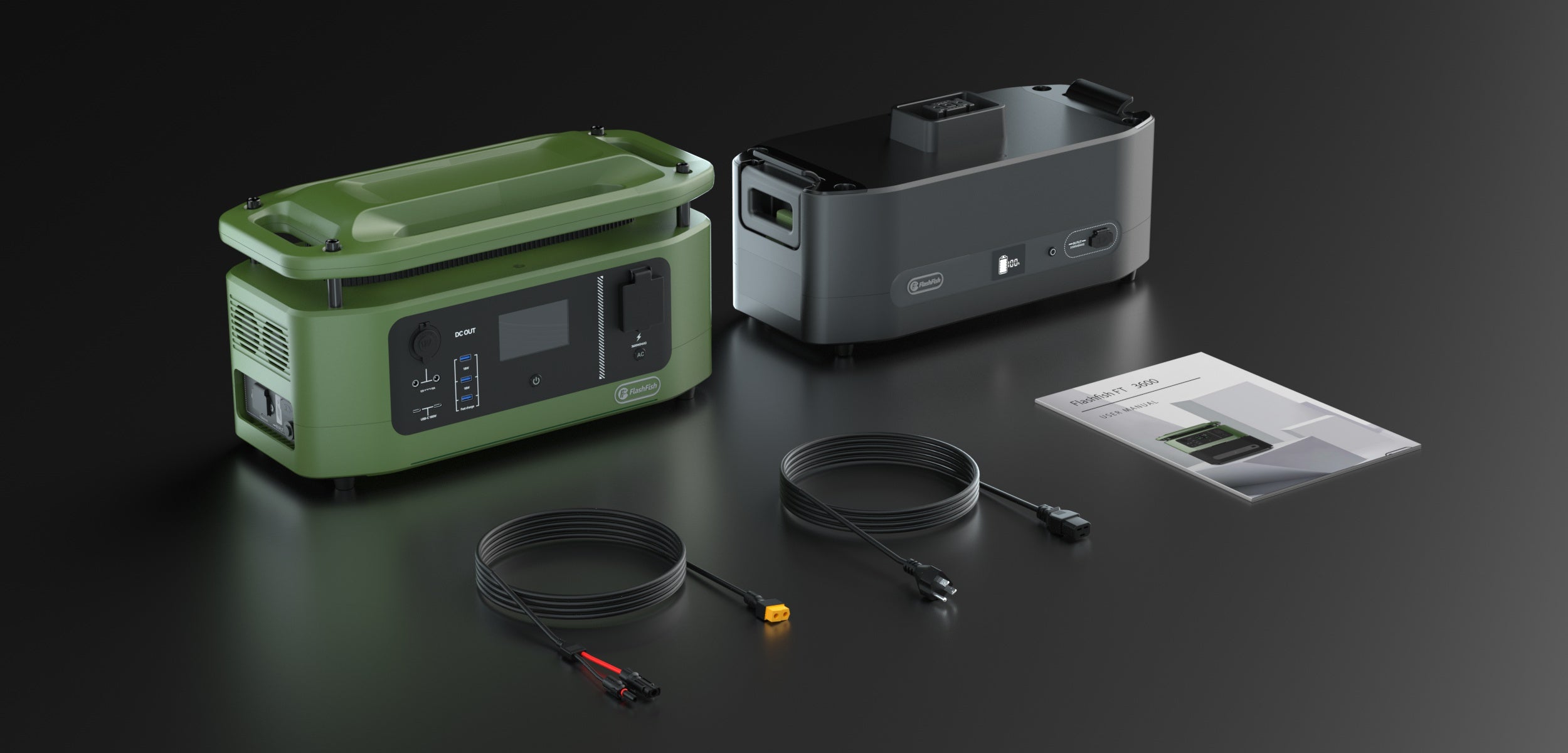

Basic Package
FT3600 Inverter Modules
LFP2300 Battery Modules
MC4 to XT-60 Input Cable
FT3600 AC Input Cable

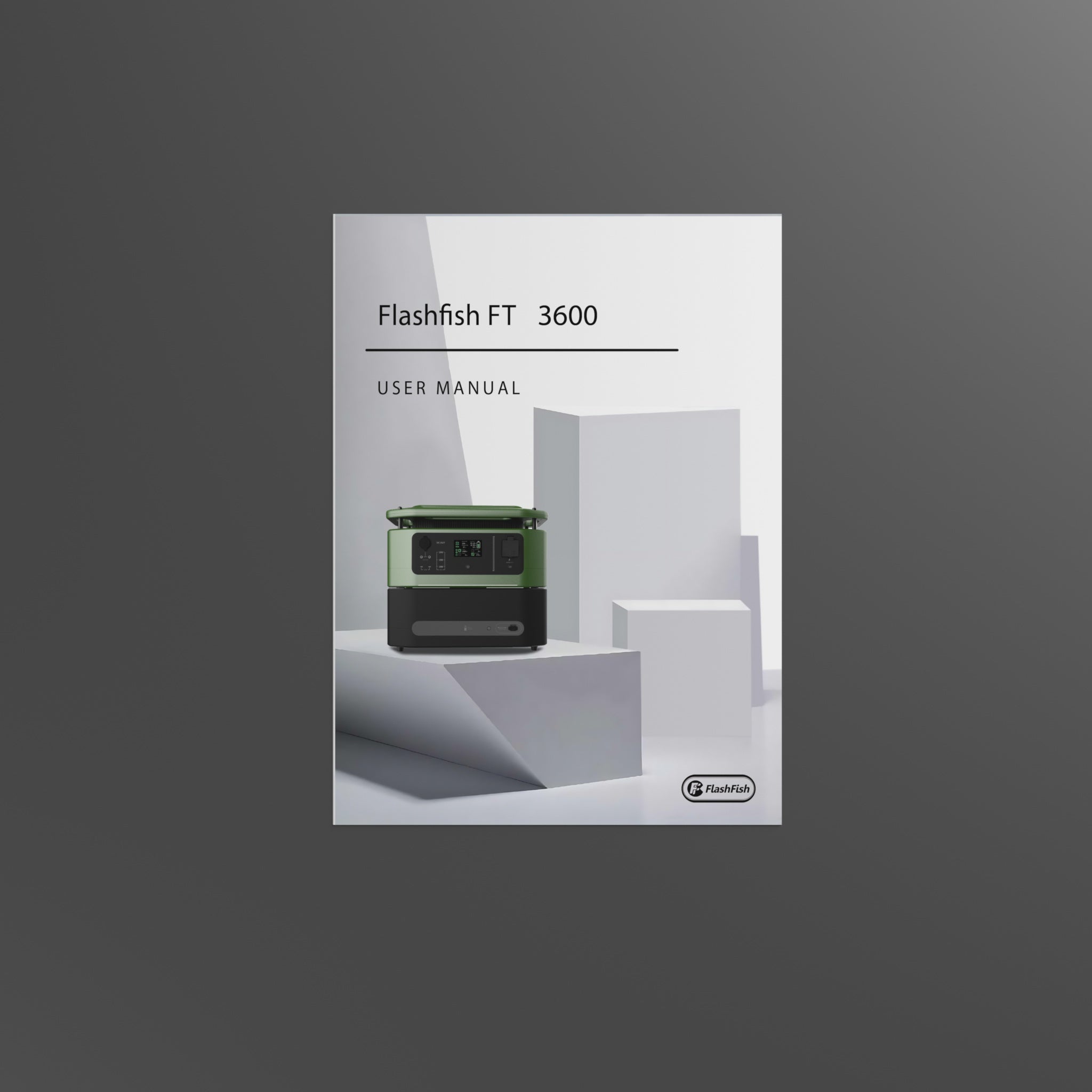

User Manual

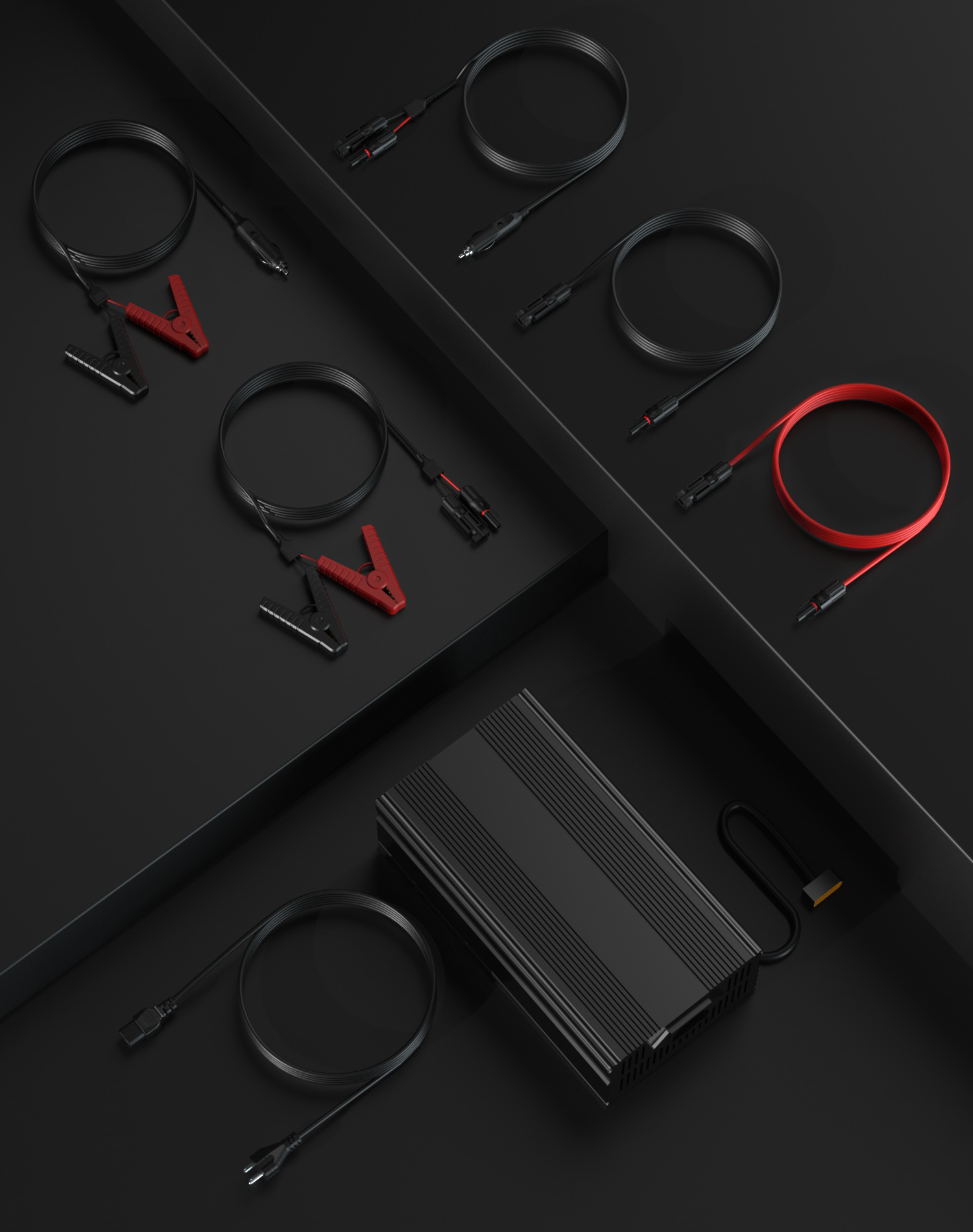

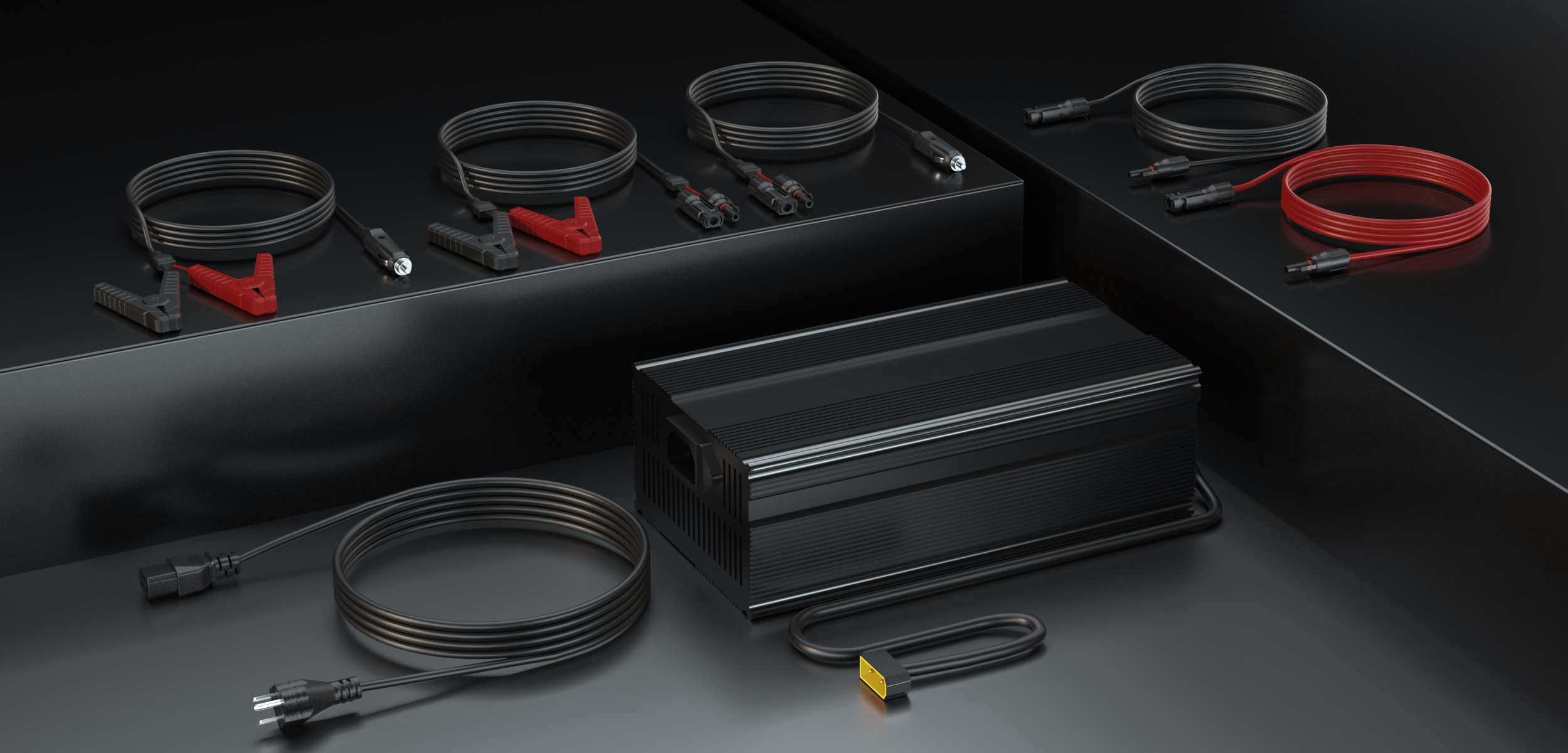

Optional Accessories
Automobile Battery Charging Cable
DC Charging Cable(Alligator Clips)
DC Charging Cable(Cigarette Lighter)
MC4 Extension Cable
DC Charging Adapter with AC Charging Cable

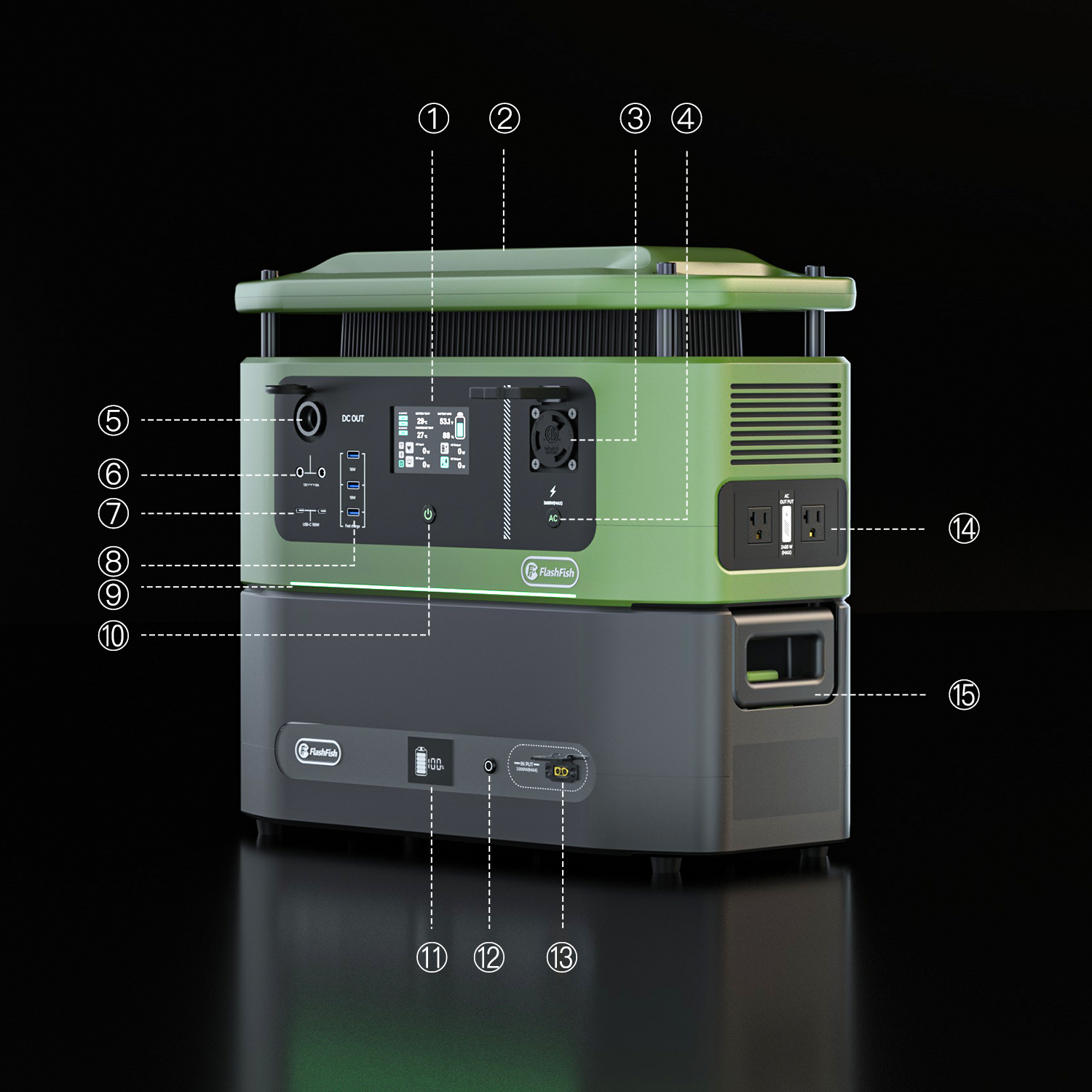

Porducts Specifications

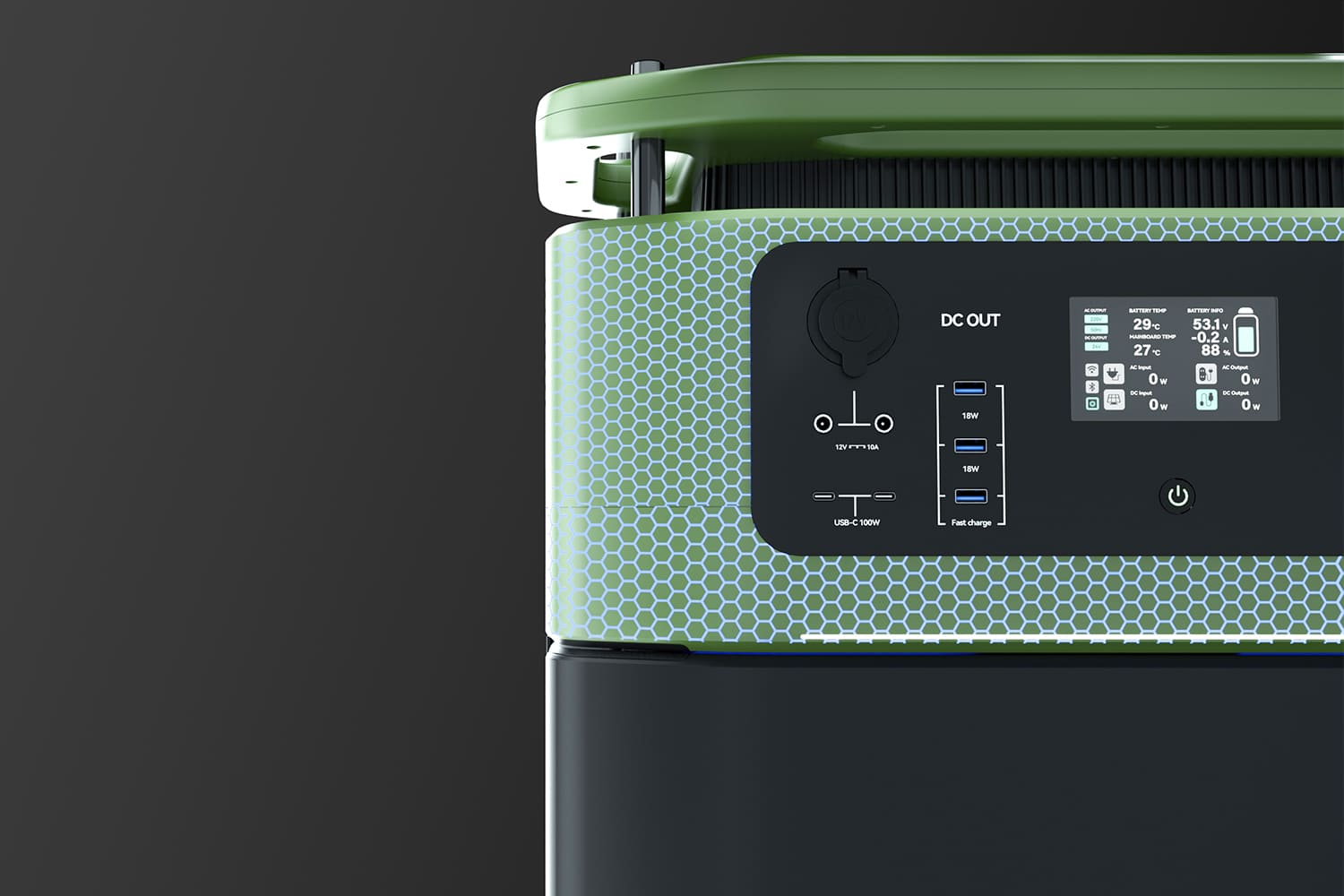

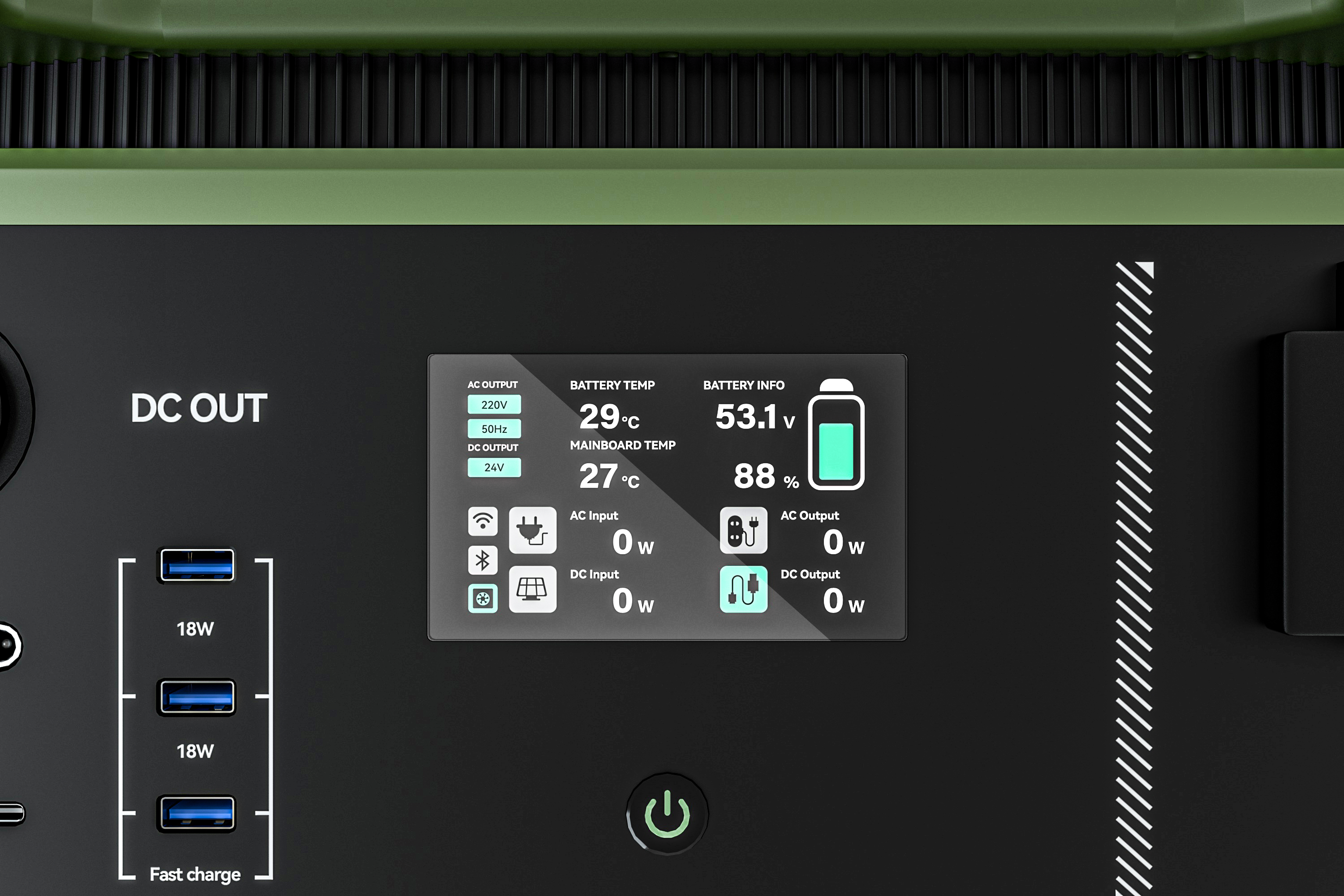

LCD Display Screen
15W Wireless Charging
3600W AC Output Socket
AC ON/OFF Switch Button
240W Cigarette Lighter Socket
2× 240W 12V/24V DC Port
2× PD 100W TYPE-C Port
3× 18W USB-A Port
LED Ambient Light
Power Switch with Control Button
Battery Display Screen
Screen Display Button
Battery Charging Port
2× 2400W AC Output Socket
Handle with Modules Lock

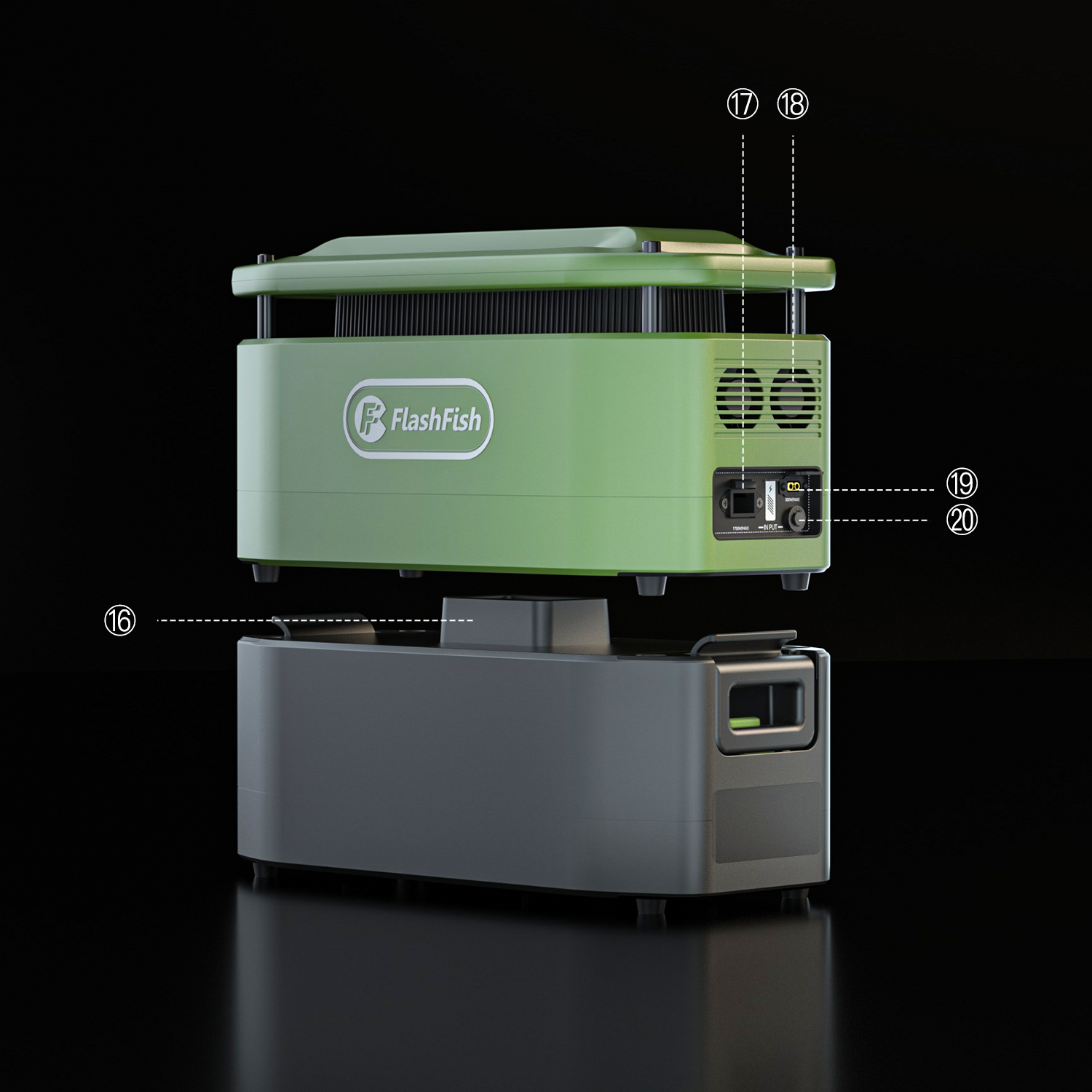

Connecting Modules
1750W AC Input Port
Silent Fan
800W Max XT-60 Input Port
Reset Button
FAQ
How can I purchase the FT3600 set?
The product is currently being funded on Indiegogo. You can make a purchase through the XX crowdfunding page.
I am in the United States/Japan/Canada. How long will it take to receive the product after purchasing?
For customers in the United States, Japan, and Canada, the delivery method involves shipping by sea to the destination country, followed by courier delivery. Typically, packages will arrive within 2 months of placing the order.
What is the warranty period for the FT3600?
The basic warranty period for the FT3600 is three years from the date of purchase. During the warranty period, if any equipment failure occurs due to non-human factors, we will provide free replacement services. You can extend the warranty period by 2 years either at the time of your first purchase or before the warranty period expires. Please refer to the "FT3600 Policy" page for details.
What should I do if I encounter usage issues or need technical support?
You can contact our customer service department at any time. Our professional team will provide you with detailed product instructions and technical support. You can reach us via email at info@flashfishtech.com or through online chat.
Can I return or exchange the product?
Absolutely. If you are not satisfied or encounter any issues after purchasing, you can apply for a return or exchange within 30 days of receiving the product. Please ensure that the product is undamaged and all accessories are intact. For specific return and exchange policies, please refer to the "Returns or Exchanges" page on our official website or contact customer service for detailed information.
